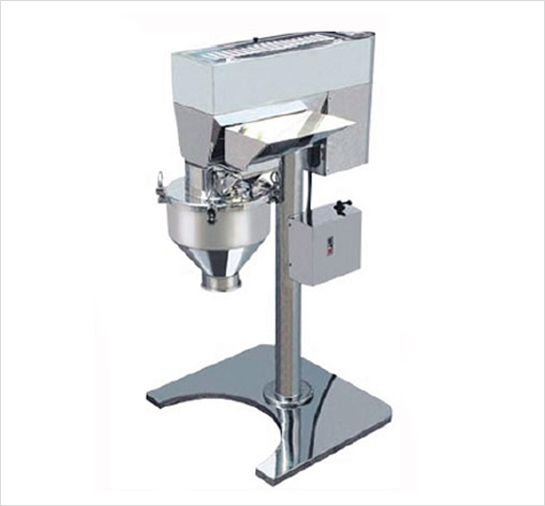

Multi Mill

MULTI MILL MANUFACTURER & SUPPLIER

Multi Mill

MULTI MILL / SEMIAUTOMATIC MULTI MILL / AUTOMATIC MULTI MILL / SIZE REDUCTION MULTI MILL / LAB MULTI MILL / ROTATING SHAFT MULTI MILL

WORKING PRINCIPLE :

Multi mill is designed to utilize the principle of variable force swing beaters having both knife and impact edges rotating within selected screen to control the particle reduction . material fed in to the processing chamber moves to the periphery and passes through the screen radially and tangentially.

SALIENT FEATURES :

• Suitable for Dry Granulation / Pulverizing / Shredding & Chopping of Materials.
• Multi Speed Drive for Various Product Grading.
• Easy Dismantling & Cleaning.
• Output 20kg To 400kg / HR Depend upon Machine Model, Characteristic of Product & the Screen Size.
• Easy Maneuverability with the help of Castor Wheels.
• Beaters 8 to 12 nos. with Knife / Impact Edge & 2 Scrapper Blades.
• Rotor Speed – 750 / 1500 / 2100 / 3000 RPM Approx.
• MULTI MILL is designed to utilize the principle of variable force swing beaters having both knife and impact edges rotating within a selected screen to control the particle reduction. Material fed in to the processing chamber moves to the periphery and passes through the screen radially and tangentially. Finally the processed material gets collected in to the container kept below the processing chamber.

APPLICATION :

• Wood processing industries
• Plastic and resins industries
• Chemical industry, colors
• Pulverization
• Granulation process
• Dye stuff Industry
• Pesticides, insecticides
• Detergent
• Spices
• Food product
