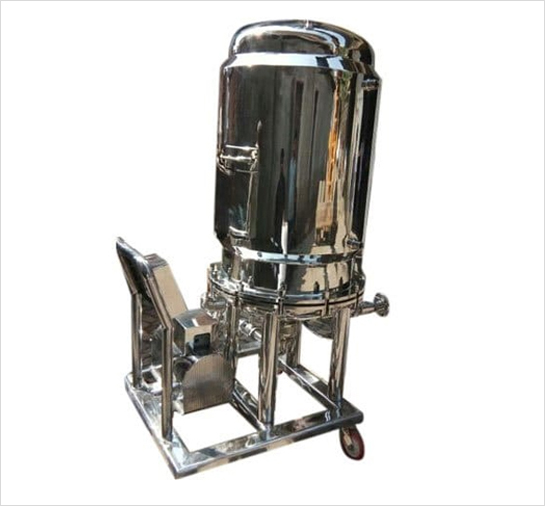

ZERO HOLD UP FILTER PRESS MANUFACTURER & SUPPLIER
SPARKLER FILTER FILTER PRESS / ZERO HOLDUP FILTER PRESS / SUGAR SYRUP FILTER PRESS / CENTRIFUGAL SPARKLER FILTER PRESS / HORIZONTAL SPARKLER FILTER PRESS / VERTICAL SPARKLER FILTER PRESS / S.S SPARKLER FILER PRESS
WORKING PRINCIPLE :
The zero holdup filter press having exactly the opposite direction of flow liquid to the flow of standard filter. The unfiltered liquid is fill into central parts of the machine with high pressure through Pump . The filter media filters the liquid when the the whole liquid spread-out equally on each plate. Solid remain on filter media and filtrate liquid collects in the shell, which comes out through the outlet, after the completing of filtration, process the cake is cleaned from filter material and can be recycled.APPLICATION :
• Juice industries• Syrup plant
• Oil industries
• Chemical industries
• Pharmaceutical industries
• Sugar plant
• Dairy industries
• Paint industries
• Distillation plant
• Beverages plants
OTHER :
• Pharmaceutical :- Antibiotics, detergent, cough syrup, glycerin• Chemical :- Acetic acid, acetone, activated carbon, acrylic acid
• Beverages :- Honey, milk, juice, alcohol, beet sugar, sugarcane bake oil, butter etc.
• Paint :- color, thinner, varnish
SALIENT FEATURES :
• Complete filtration of the batch without any hold up due to reverse flow of liquid hence large saving in time & cost.• Back wash facility can be provided for continuous operations.
• No scavenger arrangement required.
• The cake, filteraid & solids remain totally enclosed allowing filtration of toxic, hazardous & explosive liquids.
• No contamination of internal surface of shell.
• The top dome structure ensures fast & easy removal of cartridge assembly & cleaning of cake.
• Other features same as standard flow type.
